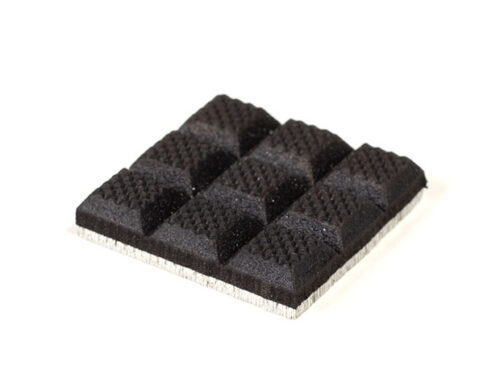

  5. 1.2” x 1.2” PFA Gripper Pad: Waffled 35 Durometer NBR Rubber Pad with Aluminum Backplate
Waffled Rubber on Aluminum 1.2x1.2 Gripper Pads

1.2” x 1.2” PFA Gripper Pad: Waffled 35 Durometer NBR Rubber Pad with Aluminum Backplate

$12.00

PFA Gripper Pad: Waffled Rubber Pad with Aluminum Backplate.  Dimensions nominal – see dimensional chart on the tab below for tolerance details.

IN STOCK

SKU: GP-733-1-1.2-1.2
Categories: , Tags: , ,

Item Details

Weight 0.063 lbs
Dimensions 1.2 × 1.2 × 0.25 in
Size

Metal Back Plate Material

Surface Texture

Durometer

Rubber Surface Material

Dimensional Chart



Click the part number in the chart below to view that specific pad in our store.

Dimensions mm (inches)
Part No.SurfaceLength
A**
mm (inch)		Width
B**
mm (inch)		Overall Thickness
C
mm (inch)		Pad Thickness
D
mm (inch)		Plate Thickness
E
mm (inch)		Durometer***
±5 Shore A		Elastomer***Plate Material***
GP-702-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		60NBR-BunaN
(Black)		Carbon Steel
GP-702-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		60NBR-BunaN
(Black)		Carbon Steel
GP-704-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		60NBR-BunaN
(Black)		Aluminum
GP-704-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		60NBR-BunaN
(Black)		Aluminum
GP-706-1A-6.0-12.0*Knurled304.8
(12.0)		152.4
(6.0)		–6.4
(0.25)		–60NBR-BunaN
(Black)		Elastomer Only**
GP-706-2A-6.0-12.0*Knurled304.8
(12.0)		152.4
(6.0)		–3.3
(0.13)		–60NBR-BunaN
(Black)		Elastomer Only**
GP-154-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		50SI-Silicone
(Blue)		Aluminum
GP-154-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		50SI-Silicone
(Blue)		Aluminum
GP-334-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		30CR-Neoprene
(Brown)		Aluminum
GP-334-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		30CR-Neoprene
(Brown)		Aluminum
GP-574-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		70FKM-Viton®
(Orange)		Aluminum
GP-574-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		70FKM-Viton®
(Orange)		Aluminum
GP-578-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		70FKM-Viton®
(Orange)		316 Stainless
GP-578-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		70FKM-Viton®
(Orange)		316 Stainless
GP-742-1A-1.2-1.2Knurled304.8
(12.0)		152.4
(6.0)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		45NBR-BunaN
(Black)		Carbon Steel
GP-742-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		45NBR-BunaN
(Black)		Carbon Steel
GP-744-1A-1.2-1.2Knurled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		45NBR-BunaN
(Black)		Aluminum
GP-744-1A-6.0-12.0Knurled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		45NBR-BunaN
(Black)		Aluminum
GP-701-1-1.2-1.2Waffled30.48
(1.2)		30.48
(1.2)		12.7
(0.50)		9.4
(0.37)		3.3
(0.13)		60NBR-BunaN
(Black)		Carbon Steel
GP-701-1-6.0-12.0Waffled304.8
(12.0)		152.4
(6.0)		12.7
(0.50)		9.4
(0.37)		3.3
(0.13)		60NBR-BunaN
(Black)		Carbon Steel
GP-703-1-1.2-1.2Waffled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		60NBR-BunaN
(Black)		Aluminum
GP-703-1-6.0-12.0Waffled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		60NBR-BunaN
(Black)		Aluminum
GP-705-1-6.0-12.0*Waffled304.8
(12.0)		152.4
(6.0)		–6.4
(0.25)		–60NBR-BunaN
(Black)		Elastomer Only**
GP-733-1-1.2-1.2Waffled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		35NBR-BunaN
(Black)		Aluminum
GP-733-1-6.0-12.0Waffled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		35NBR-BunaN
(Black)		Aluminum
GP-801-1-1.2-1.2Pebbled30.48
(1.2)		30.48
(1.2)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		60NBR-BunaN
(Black)		Carbon Steel
GP-801-1-6.0-12.0Pebbled304.8
(12.0)		152.4
(6.0)		13.5
(0.53)		10.2
(0.40)		3.3
(0.13)		60NBR-BunaN
(Black)		Carbon Steel
GP-803-1-1.2-1.2Pebbled30.48
(1.2)		30.48
(1.2)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		60NBR-BunaN
(Black)		Aluminum
GP-803-1-6.0-12.0Pebbled304.8
(12.0)		152.4
(6.0)		6.4
(0.25)		4.8
(0.19)		1.5
(0.06)		60NBR-BunaN
(Black)		Aluminum
GP-805-1-6.0-12.0*Pebbled304.8
(12.0)		152.4
(6.0)		–6.4
(0.25)		–60NBR-BunaN
(Black)		Elastomer Only**
GP-805-2-6.0-12.0*Pebbled304.8
(12.0)		152.4
(6.0)		–3.3
(0.13)		–60NBR-BunaN
(Black)		Elastomer Only**
*No metal plate

**Elastomer only pads may show some dimensional contraction. Use A=11-5/8” and B=5-3/4” actual for planning on 6” x 12” pads and assume nominal A & B dimensions for all metal backed pads (+.050/- .090”), nominal thickness (+/-.050”), and nominal squareness for smaller sizes as these are cut from standard nominal 6” x 12” pads. For custom machined sizes and make to print items, contact PFA.

***Durometer specifications are nominal +/- 5 to +/- 10 Shore A as shown. Durometers are rounded from actual on various materials – consult PFA for more specific durometer information. Polymer Type Abbreviations: CR = Neoprene (Chloroprene), NBR = Nitrile Butadiene Rubber (Buna-N), FKM = (Also FPM) High Temperature Fluoropolymer (Viton®), SI = Silicone (Polysiloxane), backing plate material is Aluminum (6061-T6), low carbon steel (10 gauge), or 316 Stainless Steel (or similar).
